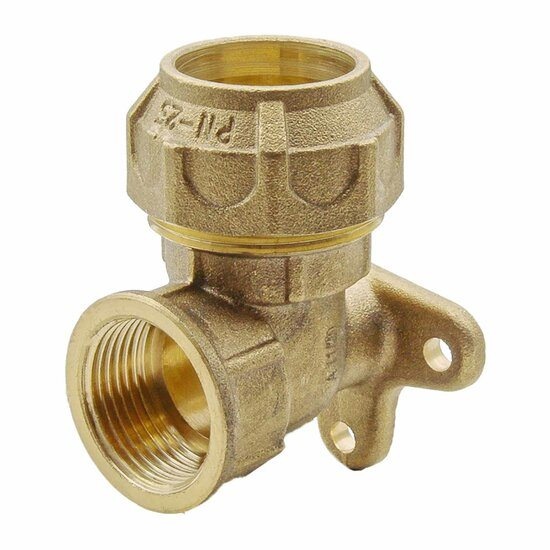

MT Valves & Fittings product. Series HS wall plated elbow with female thread and compression fitting with female nut for polyethylene pipes. Body, nut, gasket ring and neck ring made of brass, in accordance with UNE EN 12165 standard and sandblasted finish. Model HS511 with metric compression thread in accordance with ISO724 (DIN 13) and union thread in accordance with ISO 228 (BS 2779) has an NBR O-ring. It has a tightness of up to 40 bar pressure and withstands a nominal pressure of 25 bar (400 psi) and a maximum operating temperature of 90°C. The fitting is guaranteed for use in both hot and cold water and complies with the pressure conditions in accordance with DIN 8076-1. This product is part of the wide range of MT products and accessories intended to cover the different market needs and satisfy the requirements of the different applications in sectors such as industry, plumbing, heating, irrigation, etc. Available references and published specifications: • HS51101120 — measures: WALL PLATED ELBOW 20X1/2"; weight (kg): 0.13; small / large box: 10 / 80 • HS51102340 — measures: WALL PLATED ELBOW 25X3/4"; weight (kg): 0.2; small / large box: 10 / 50 • HS51103100 — measures: WALL PLATED ELBOW 32X1"; weight (kg): 0.33; small / large box: 5 / 25 Price and local availability on request. Source: https://mtspain.net/en/pe-f-wall-plated-elbow/
