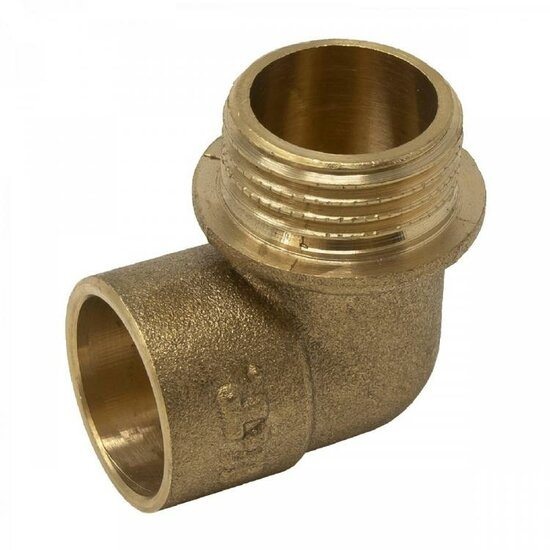

MT Valves & Fittings product. Series 86 90° elbow with connection for soldering to copper pipe and male thread. Brass body in accordance with standard UNE-EN 12164. Elbow 86092, with thread locking in accordance with ISO 288/1, withstands a nominal pressure of 16 bar and an operating temperature of between -20 to 120°C. Thanks to its soldering connection system to copper pipe, it is easy and quick to install, saving time and making assembly more convenient. MT’s soldered brass fittings are manufactured in accordance with the hot stamping method and in accordance with EN 1254-1. They have high temperature and pressure resistance, making them ideal for both hot and cold water fluid handling applications and are suitable for EN 1057:2007 copper pipe systems. Available references and published specifications: • 860921215 — measures: M-CU ELBOW 12X1/2"; weight (kg): 0.03; small / large box: 25 / 325 • 860921415 — measures: M-CU ELBOW 14X1/2"; weight (kg): 0.04; small / large box: 25 / 300 • 860921515 — measures: M-CU ELBOW 15X1/2"; weight (kg): 0.04; small / large box: 25 / 300 • 860921815 — measures: M-CU ELBOW 18X1/2"; weight (kg): 0.05; small / large box: 25 / 250 • 860922215 — measures: M-CU ELBOW 22X1/2"; weight (kg): 0.06; small / large box: 10 / 160 • 860922220 — measures: M-CU ELBOW 22X3/4"; weight (kg): 0.07; small / large box: 10 / 130 Price and local availability on request. Source: https://mtspain.net/en/m-cu-elbow/
