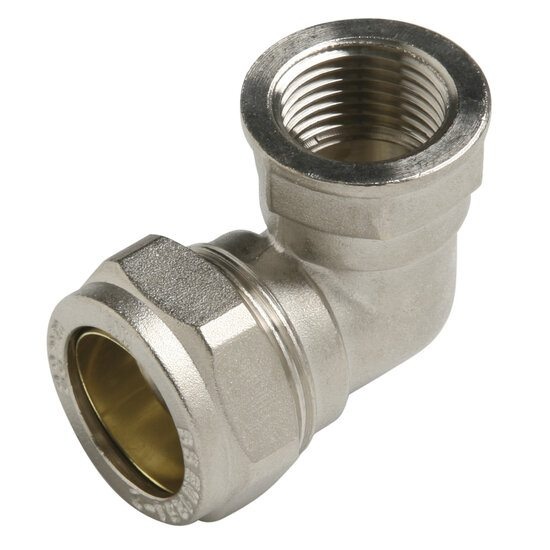

MT Valves & Fittings product. Series 66 Female 90° Elbow with compression fitting for copper and stainless steel pipes and female thread. Brass fitting in accordance with standard UNE-EN 12164. Nickel-plated brass body and nut and fastening threads in accordance with ISO 288/1. Elbow 6605 has a pressure rating of 16 bar and a maximum temperature rating of 30°C at 16 bar, 65°C at 10 bar, 110°C at 6 bar and 120°C at 5 bar. Thanks to its compression fitting system, it is easy and quick to install, saving time and making assembly more convenient. MT’s brass compression fittings are manufactured in accordance with the hot forging method and in accordance with EN 1254-2. They have high temperature and pressure resistance, making them ideal for both hot and cold water fluid handling applications and are suitable for EN 1057:2007 copper and BS4127:1994 stainless steel pipe systems. Available references and published specifications: • 660501515 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 15X1/2"; weight (kg): 0.06; small / large box: 10 / 170 • 660501520 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 15X3/4"; weight (kg): 0.07; small / large box: 10 / 140 • 660501815 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 18X1/2"; weight (kg): 0.07; small / large box: 10 / 140 • 660501820 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 18X3/4"; weight (kg): 0.09; small / large box: 10 / 110 • 660502215 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 22X1/2"; weight (kg): 0.08; small / large box: 10 / 110 • 660502220 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 22X3/4"; weight (kg): 0.1; small / large box: 10 / 100 • 660502225 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 22X1"; weight (kg): 0.13; small / large box: 10 / 60 • 660502825 — measures: NICKEL PLATED FEMALE BRASS ELBOW 90º 28X1"; weight (kg): 0.15; small / large box: 10 / 60 Price and local availability on request. Source: https://mtspain.net/en/female-90-elbow-nickel-plated-brass-compression/
