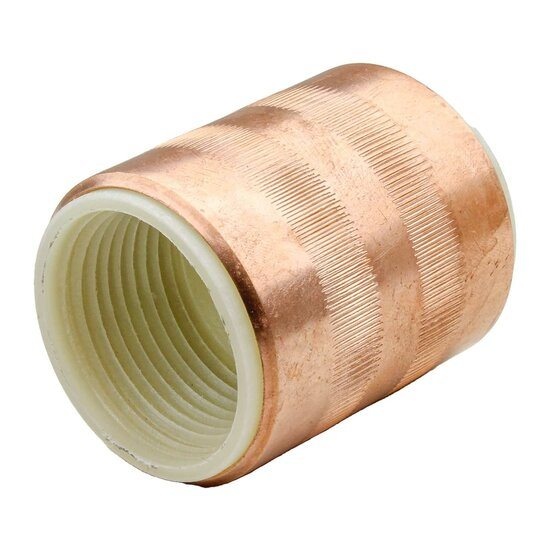

MT Valves & Fittings product. Series 87 anti-electrolysis socket with female-female connection. Outer body made of 99.9% copper, inner made of polyamide 6.0 (Nylon) + 30% glass fibre and inner threads in accordance with gas standard BSPP ISO 7-1. Socket 87271 with threaded connection is self-extinguishing with a dielectric strength of 50 kV/mm². It maintains tensile strength at 7.44 kg/mm², flexural strength at 7.75 kg/mm² and compressive strength at 6.32 kg/mm². It has a maximum working pressure of 16 PN and an operating temperature range from -12 to 105°C. It is especially suitable for systems where there are elements of different nature and composition, such as copper/iron, guaranteeing the elimination of galvanic couples. They have a high temperature resistance, making them ideal for both hot and cold water fluid handling applications. Available references and published specifications: • 87271015 — measures: F-F ANTIELECTROLITIC SOCKET 1/2"; weight (kg): 0.03; small / large box: 25 / 250 • 87271020 — measures: F-F ANTIELECTROLITIC SOCKET 3/4"; weight (kg): 0.05; small / large box: 15 / 150 • 87271025 — measures: F-F ANTIELECTROLITIC SOCKET 1"; weight (kg): 0.08; small / large box: 10 / 70 • 87271032 — measures: F-F ANTIELECTROLITIC SOCKET 1 1/4"; weight (kg): 0.19; small / large box: 1 / 45 • 87271040 — measures: F-F ANTIELECTROLITIC SOCKET 1 1/2"; weight (kg): 0.27; small / large box: 1 / 30 • 87271050 — measures: F-F ANTIELECTROLITIC SOCKET 2"; weight (kg): 0.45; small / large box: 1 / 20 Price and local availability on request. Source: https://mtspain.net/en/f-f-anti-electrolysis-socket/
